M6 Ultrasound System
Overview

It has been a long, challenging path for clinicians to bring high-level standard diagnosis to the bedside for intensive patient care. Up to now, there has been a limited choice of size and performance of traditional ultrasound systems.With health care within reach in mind, Instromedix India released the new M6, the ideal balanced of capability and size to realize a confident diagnosis at the bedside.

Performance

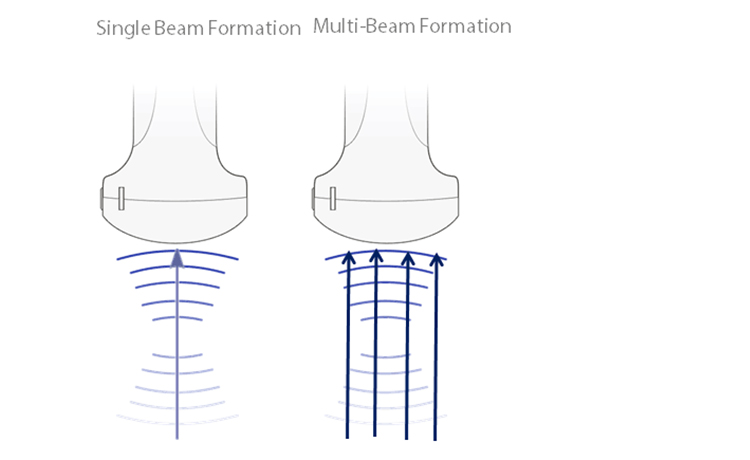

Multiple Beam Formation

Maximum 4 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

Multiple Beam Formation

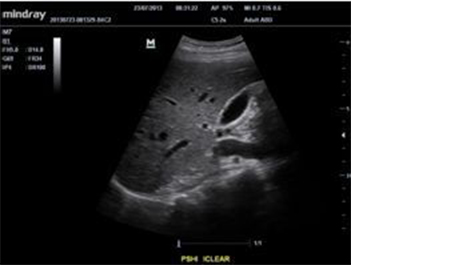

iClearTM

Gain improved image quality based on auto structure detection

  • Sharper & Continuous Edges.
  • Smooth Uniform Tissues.
  • Cleaner ‘no echo areas’.
iClear

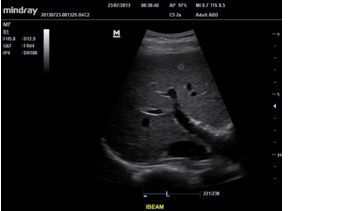

iBeamTM

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

iBeam

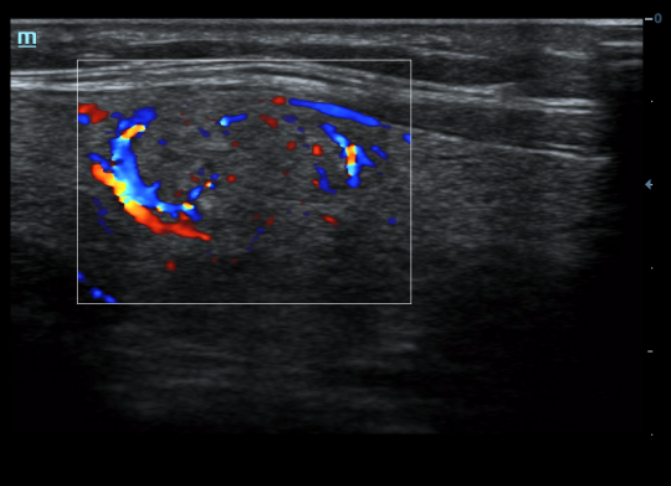

HR FlowTM

An innovative technology to better visualize tiny vessels and complex flow patterns, based on Instromedix India's exclusive processing algorithm.

HR Flow
UWN Contrast Imaging (Ultra-Wideband Non-linear)

UWN contrast imaging enables M6 to detect and utilize both 2nd harmonic and non-linear fundamental signals, generating images with significant enhancements.

  • More sensitive minor signal, reduced agent dosage
  • Longer agent duration with lower MI requirement

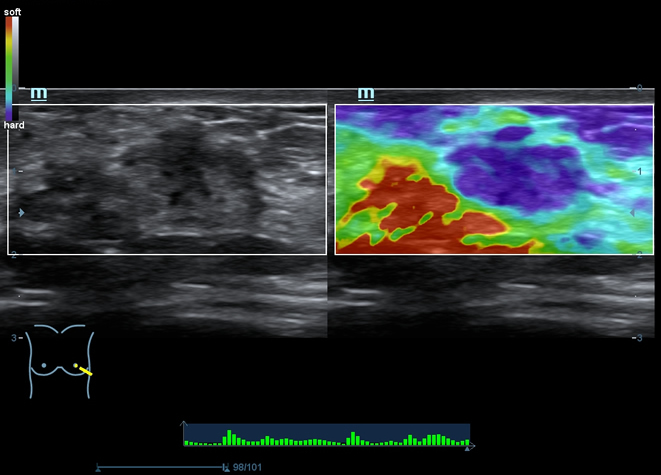

Natural Touch Elastography

Based on Instromedix India’s latest patented technology, natural touch elastography reduces dependence on user operation technique, improving operator’s reproducibility.

  • Higher stiffness sensitivity
  • Good stability and reproducibility
Natural Touch Elastography

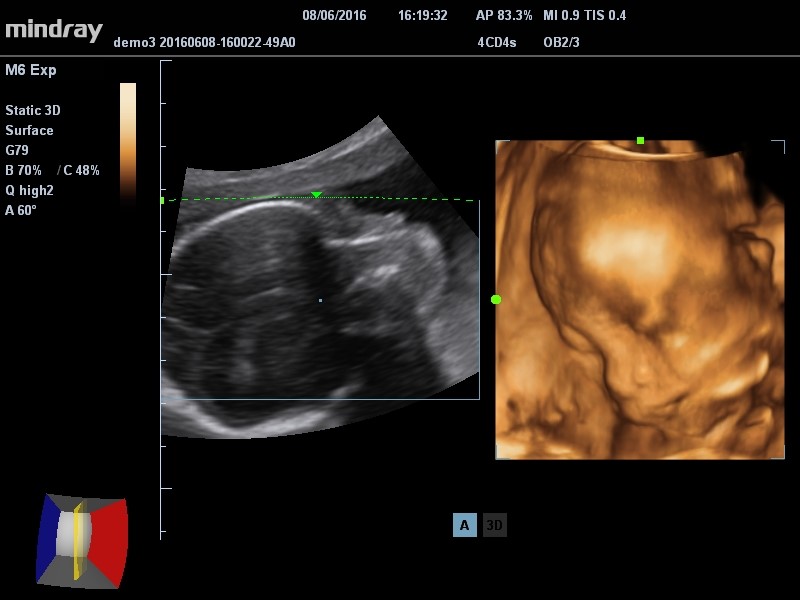

3D/4D Imaging

3D/4D imaging technology delivers a range of tools that help take advantage of the full value of volume data. With rich rendering modes, more information on fetus structure is made available to make a more confident diagnosis.

3D/4D Imaging
TDI & TDI QA

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.


TDI & TDI QA
Workflow
iTouchTM(Auto Image Optimization)

Gain instant auto image optimization in B, Color and PW Modes on the click of single key.

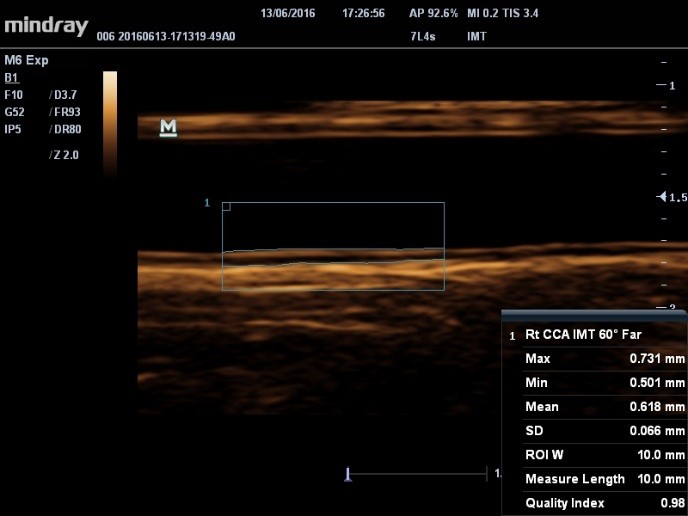

IMT (Intima-Media Thickness)

Auto measurement of anterior and posterior wall thickness providing accurate carotid status.

IMT (Intima-Media Thickness)

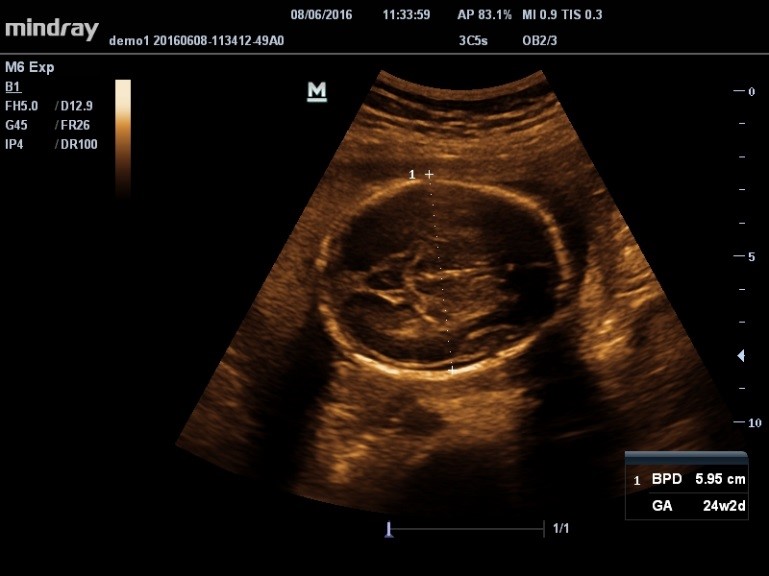

Smart OBTM

Auto measurement of fetal parameters:trace and calculate the BPD,OFD,HC,AC and FL on a single click.

Smart OB
Smart Track

Instromedix India’s unique function: Continuously track the color flow and optimize the best Color box position and angle in real time scanning

iStationTM

Instromedix India’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.

iZoomTM

Gain instant full screen view on the click of a single key.

iStorageTM

Directly transfer images and reports to PC via network cable.

iRoamTM

Wireless data transfer solution.

DICOM

Comprehensive DICOM solution.

MedSight

Interactive App that could transfer clinical images/cines and reports from M6 to IOS smart devices via WiFi.

Ergonomics
  • Lightweight Hand-carried design
  • Special designed cart with built-in handle
  • High hard drive capacity
  • Uninterrupted scanning with rechargeable battery
Transducers
C5-2s Center Frequency: 3.5MHz

C5-2s
Center Frequency: 3.5MHz

4CD4s Center Frequency: 4.5MHz

4CD4s
Center Frequency: 4.5MHz

L12-4s Center Frequency: 7.5MHz

L12-4s
Center Frequency: 7.5MHz

P4-2s Center Frequency: 2.5MHz

P4-2s
Center Frequency: 2.5MHz

V10-4s Center Frequency: 6.5MHz

V10-4s
Center Frequency: 6.5MHz

V10-4Bs Center Frequency: 6.5MHz

V10-4Bs
Center Frequency: 6.5MHz
